Design Approval Catalogue

30m A-Double

#

Summary

PBS Access Level 2
Bridge Assessment Tier 1
Maximum GCM 85.0 tonnes
Maximum Length 30 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

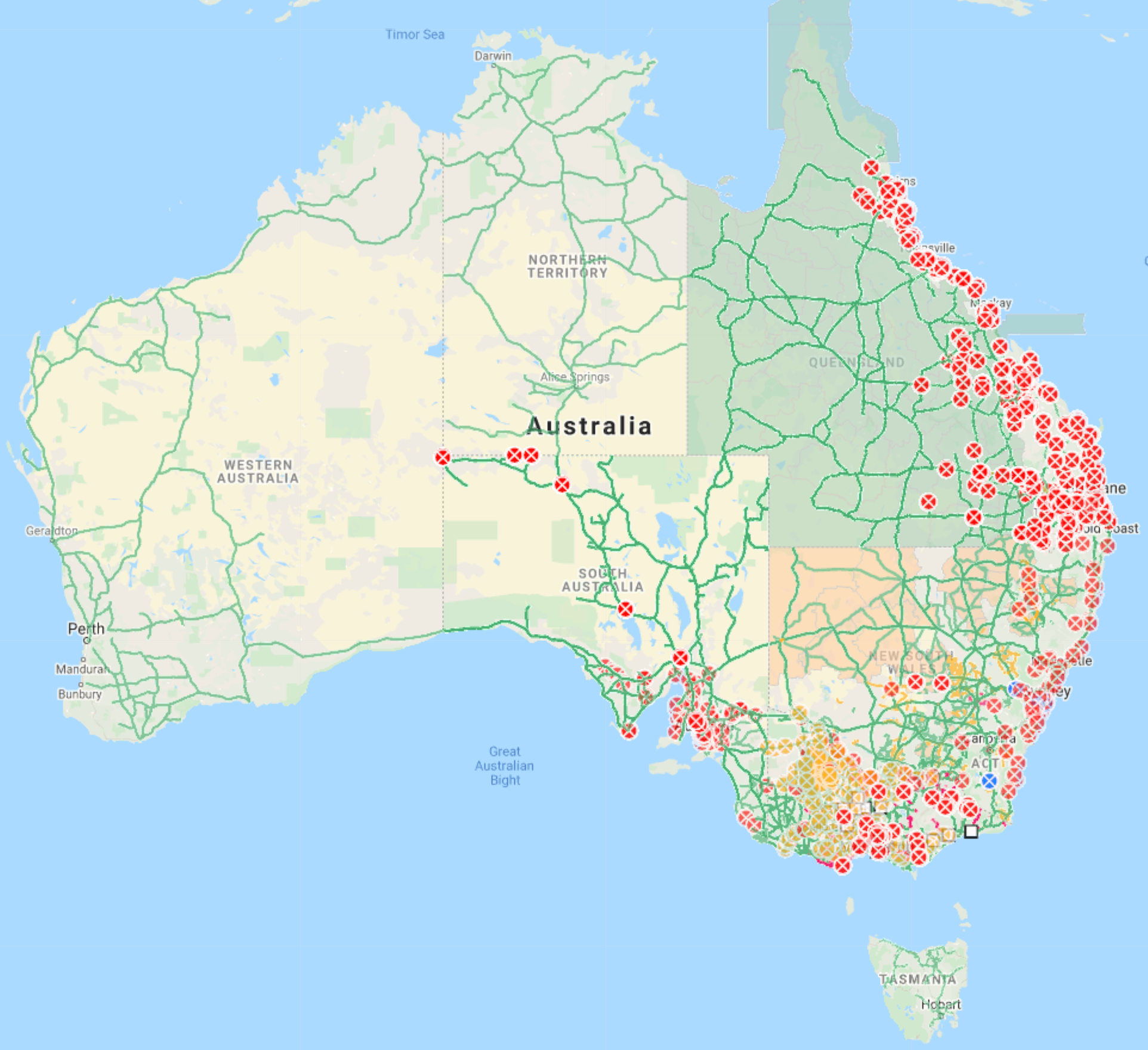

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

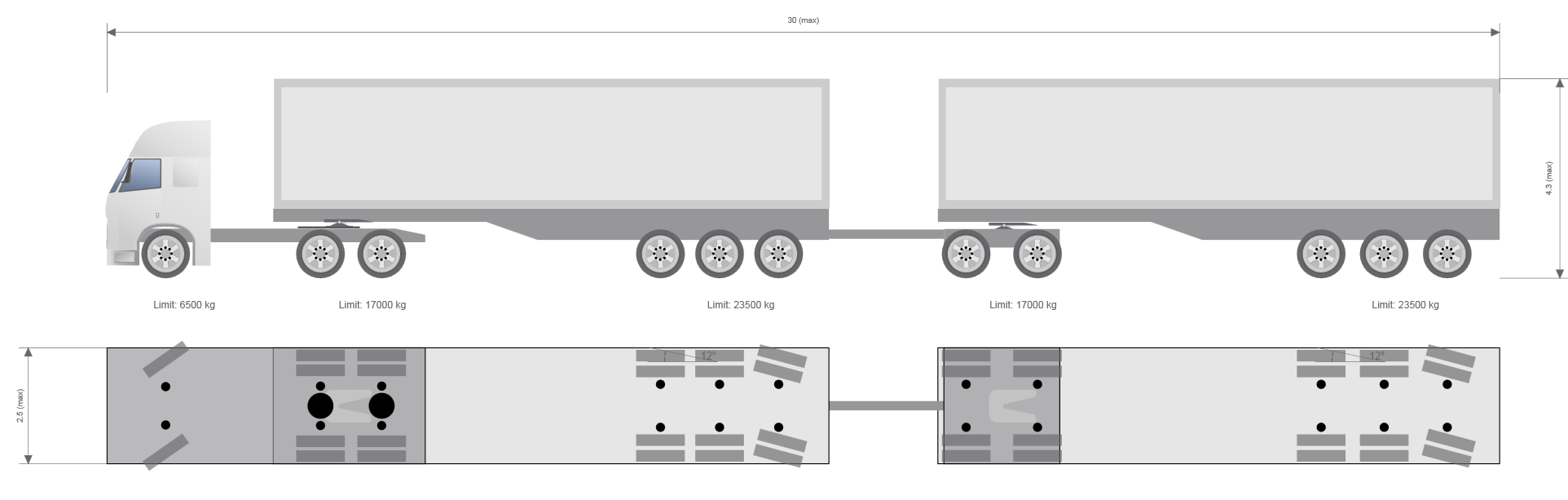

30m A-Double Western Australian

#

Summary

PBS Access Level 3
Bridge Assessment Tier 3
Maximum GCM 87.5 tonnes
Maximum Length 30.0 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 3 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

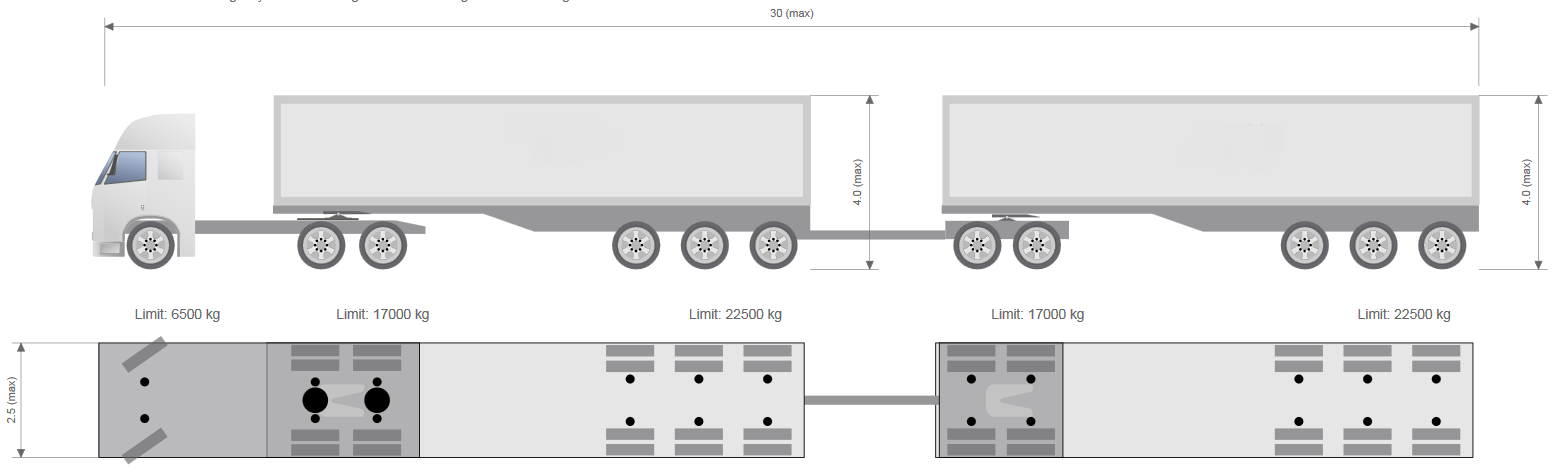

30m A-Double Tipper

#

Summary

PBS Access Level 2B
Bridge Assessment Tier 1 / Tier 3
Maximum GCM 81.75 tonnes / 85.0 tonnes
Maximum Length 30 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

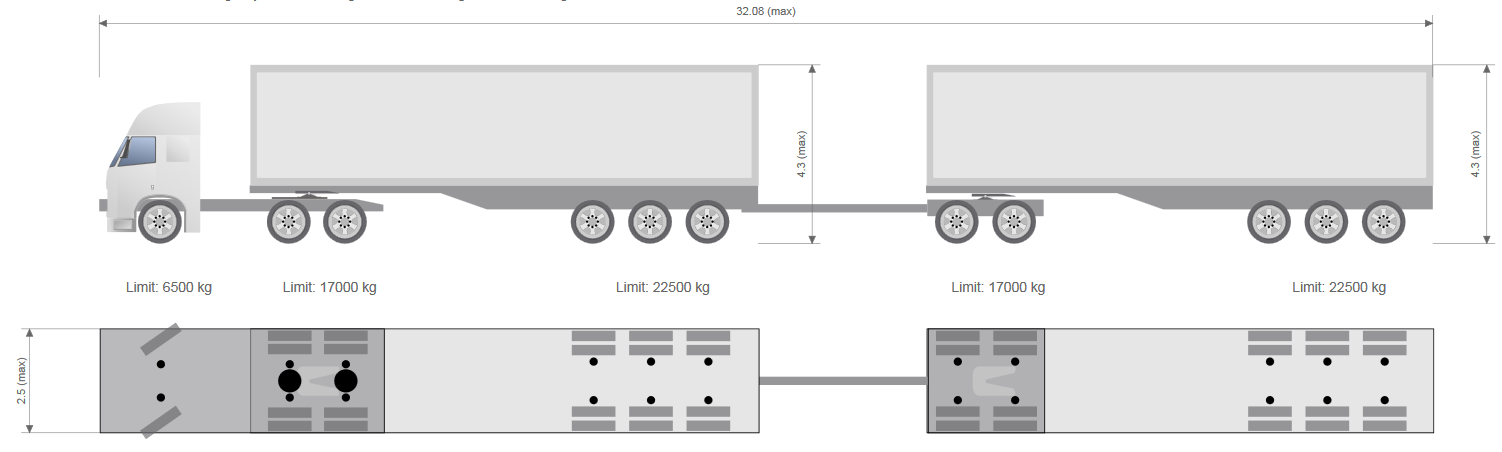

32m A-Double

#

Summary

PBS Access Level 3
Bridge Assessment Tier 1
Maximum GCM 85.5 tonnes
Maximum Length 32.0 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 3 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

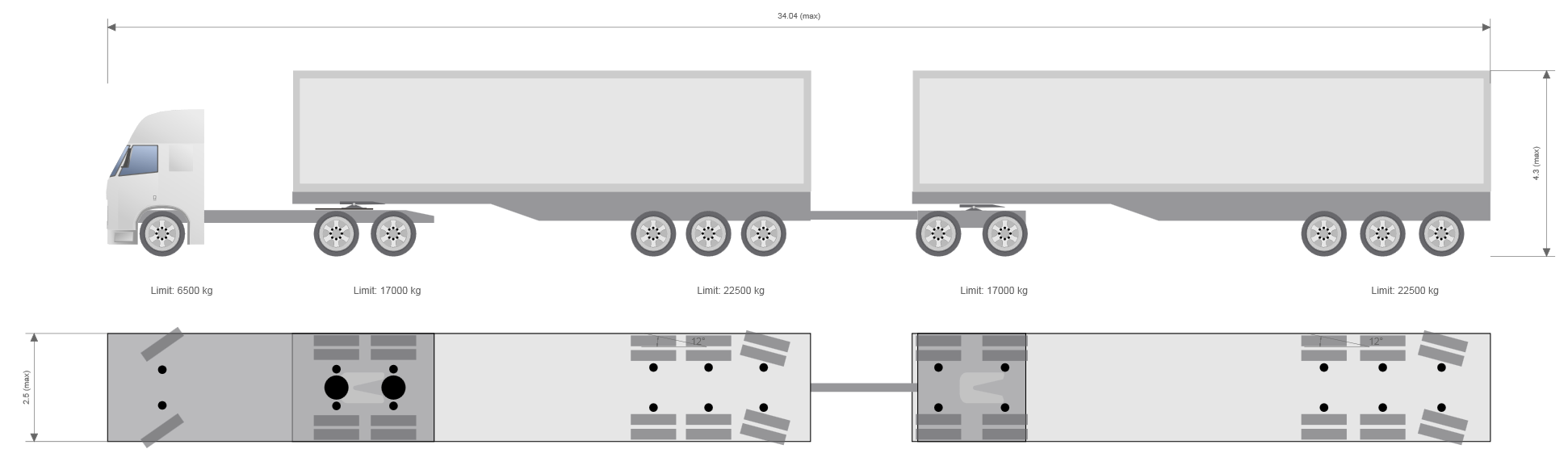

34m A-Double

#

Summary

PBS Access Level 3
Bridge Assessment Tier 3
Maximum GCM 85.5 tonnes
Maximum Length 34.04 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 3 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

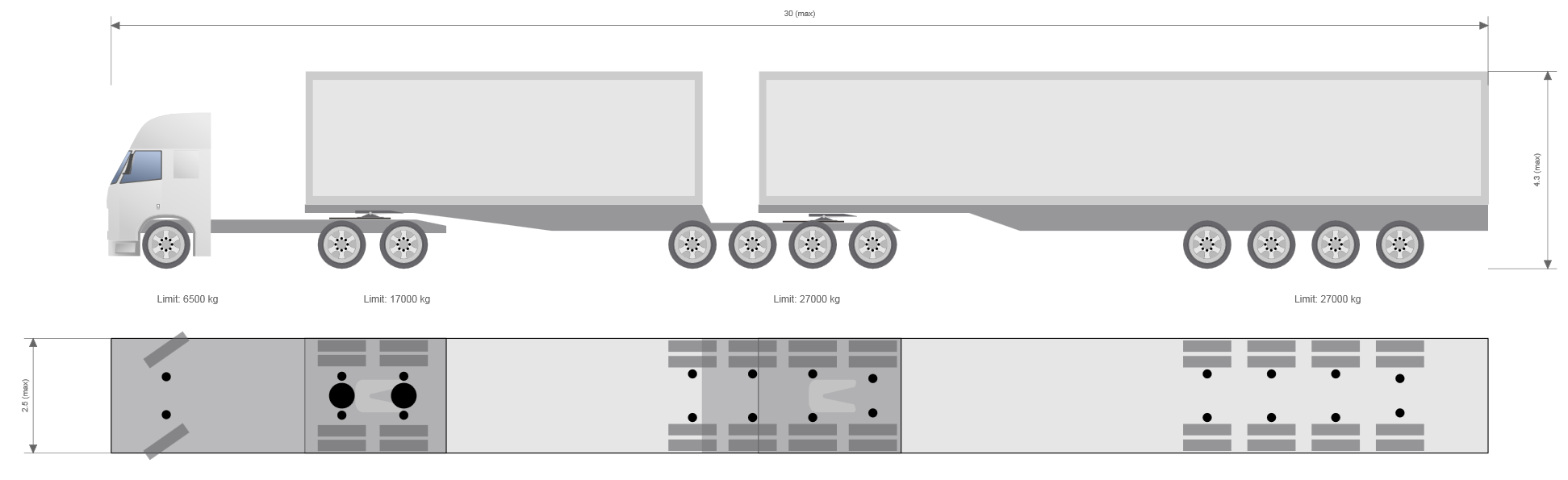

30m B-Double Quad-Quad

#

Summary

PBS Access Level 2
Bridge Assessment Tier 3
Maximum GCM 77.5 tonnes
Maximum Length 30.0 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

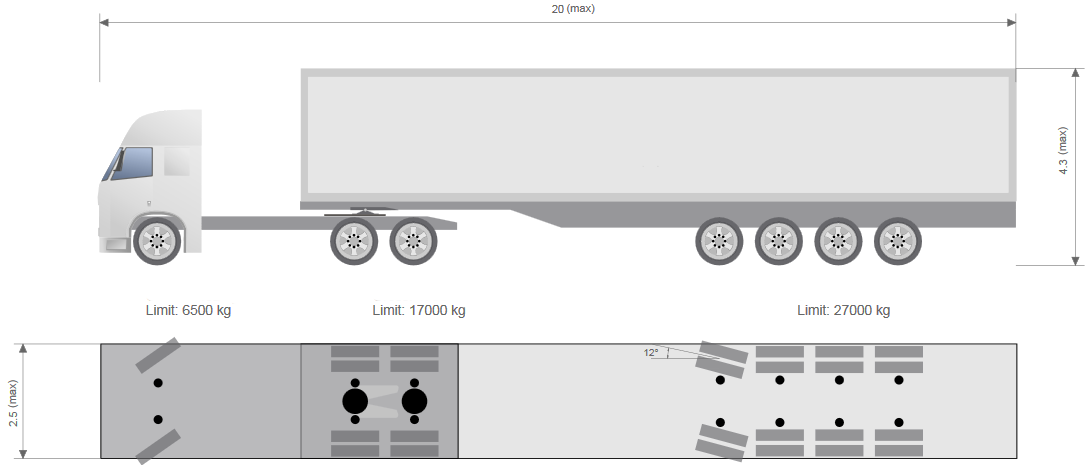

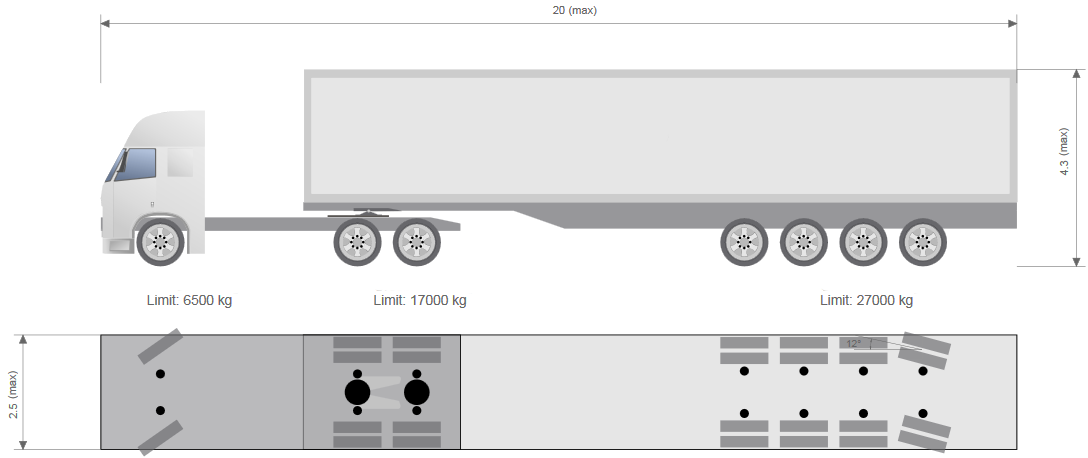

20m Quad-Semi

1 / 2
#
Front Steer
2 / 2
Rear Steer

Summary

PBS Access Level 1
Bridge Assessment Tier 1 / Tier 3 (HML)
Maximum GCM 50.5 tonnes
Maximum Length 20.0 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Axle Options Front Stear/Rear Steer
Card image cap

Vehicle Road Access

PBS Level 1 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

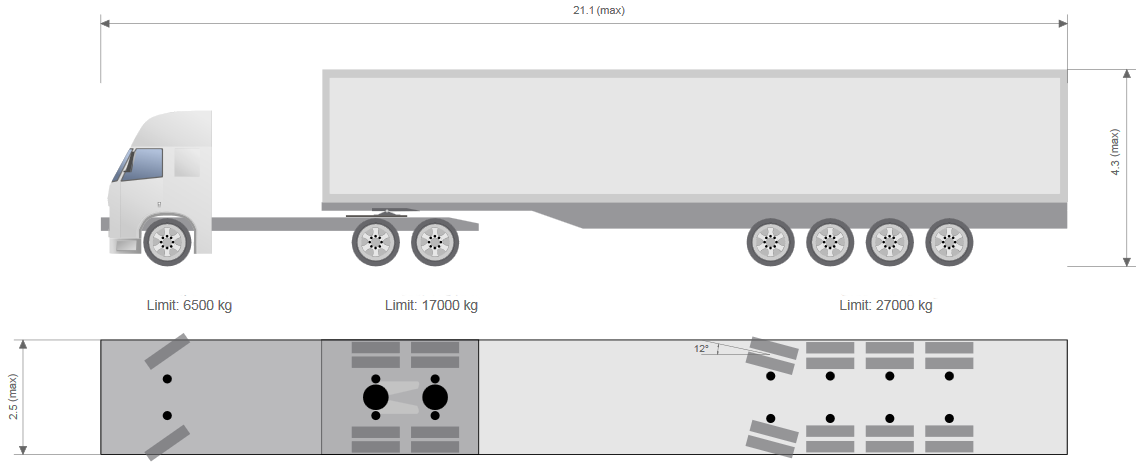

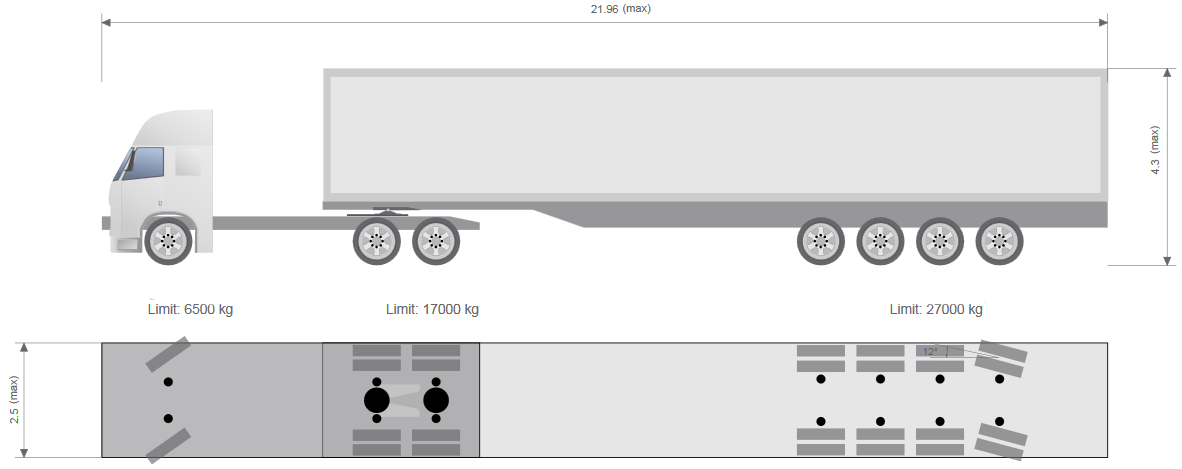

21m Quad-Semi

1 / 2
#
Front Steer
2 / 2
Rear Steer

Summary

PBS Access Level 2
Bridge Assessment Tier 1
Maximum GCM 50.5 tonnes
Maximum Length 21.0 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Axle Options Front Stear/Rear Steer
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

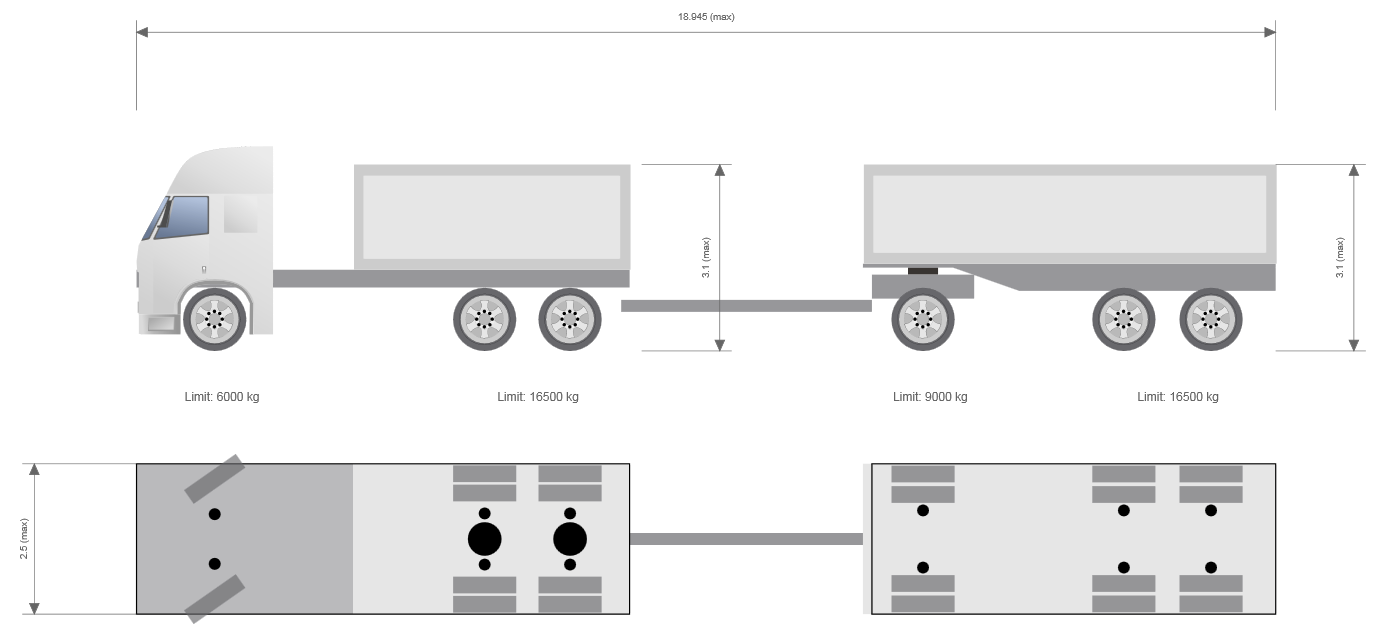

18m 6x4 Truck and Tri-axle Dog

#

Summary

PBS Access Level 1
Bridge Assessment Tier 1
Maximum GCM 49.5 tonnes
Maximum Length 18.945
Maximum Width 2.5 m
Maximum Height 3.1 m
Card image cap

Vehicle Road Access

PBS Level 1 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

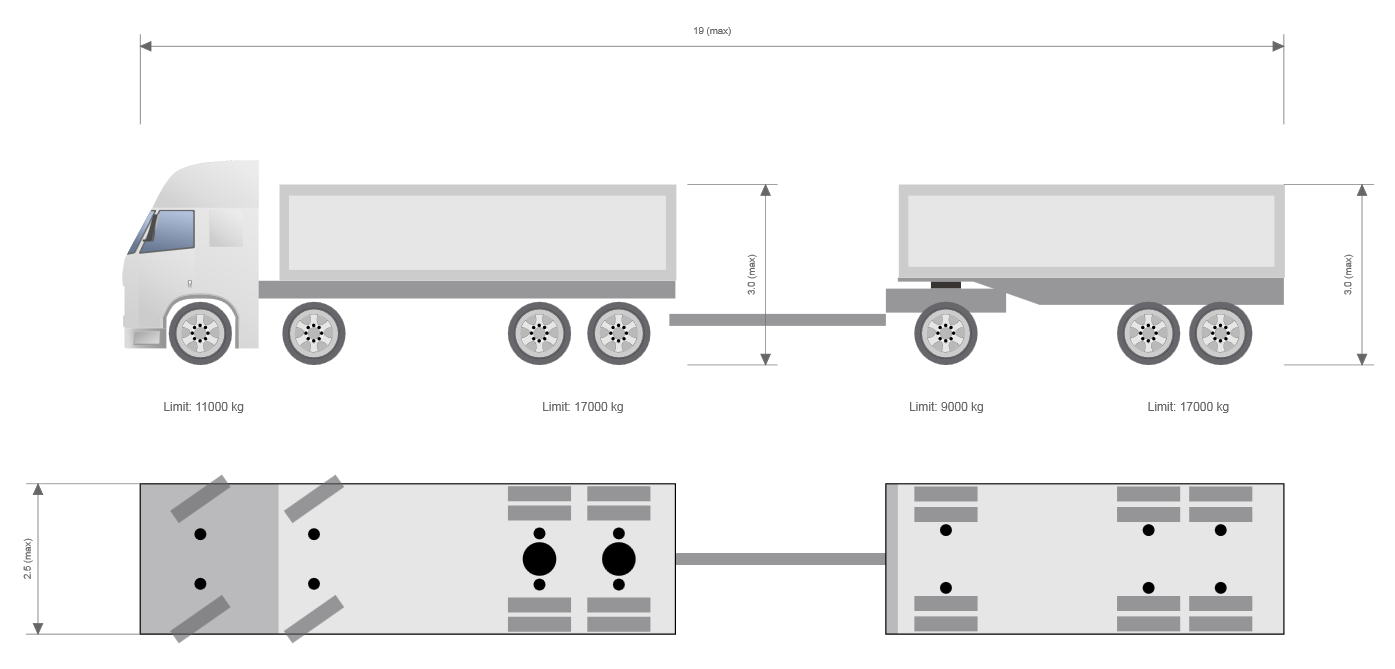

19m 8x4 Truck and Tri-axle Dog

#

Summary

PBS Access Level 1 / Level 2
Bridge Assessment Tier 1
Maximum GCM 50.48 tonnes / 54.0 tonnes
Maximum Length 19.0m
Maximum Width 2.5 m
Maximum Height 3.0 m
Card image cap

Vehicle Road Access

PBS Level 1 and Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

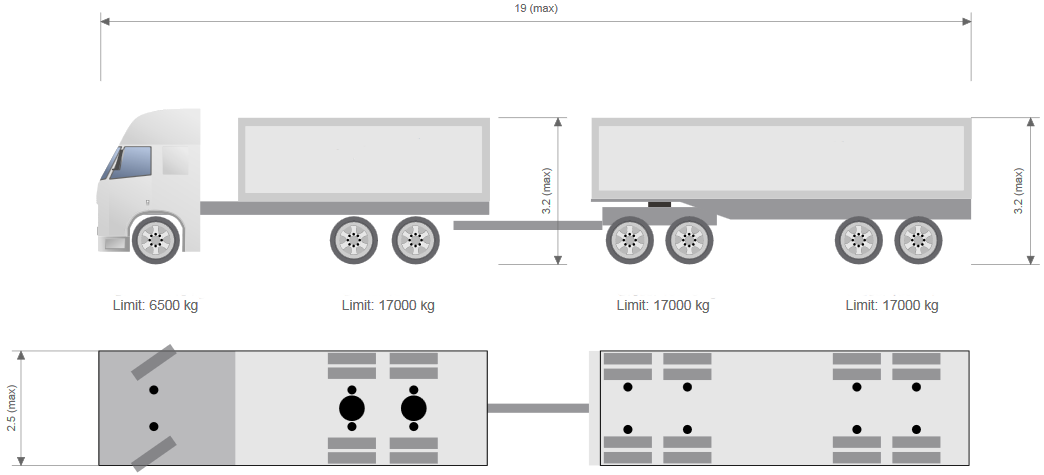

19m 6x4 Truck and Quad-Dog

#

Summary

PBS Access Level 2
Bridge Assessment Tier 1
Maximum GCM 57.5 tonnes
Maximum Length 19.0 m
Maximum Width 2.5 m
Maximum Height 3.2 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

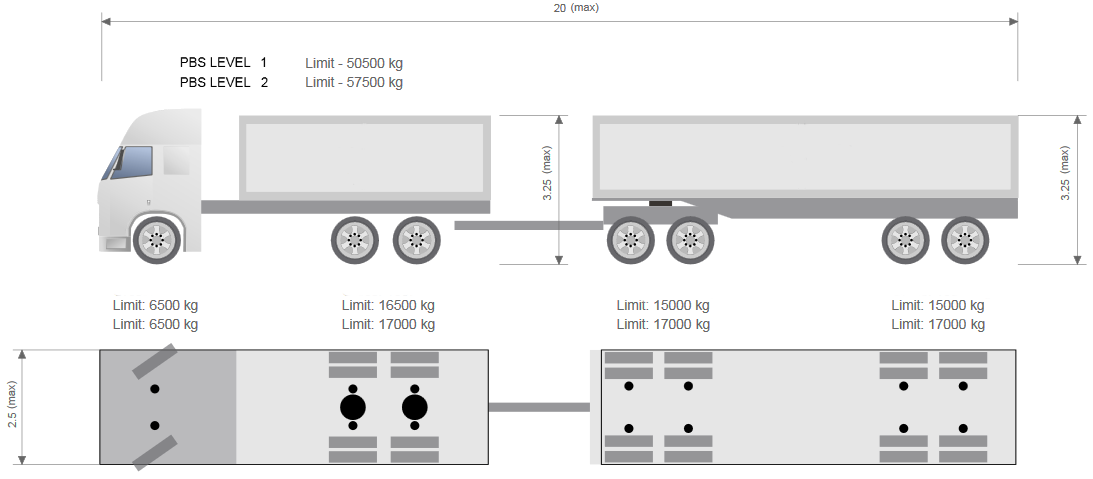

20m 6x4 Truck and Quad-Dog

#

Summary

PBS Access Level 1 / Level 2
Bridge Assessment Tier 1
Maximum GCM 50.5 tonnes / 57.5 tonnes
Maximum Length 20.0 m
Maximum Width 2.5 m
Maximum Height 3.25 m
Card image cap

Vehicle Road Access

PBS Level 1 and Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

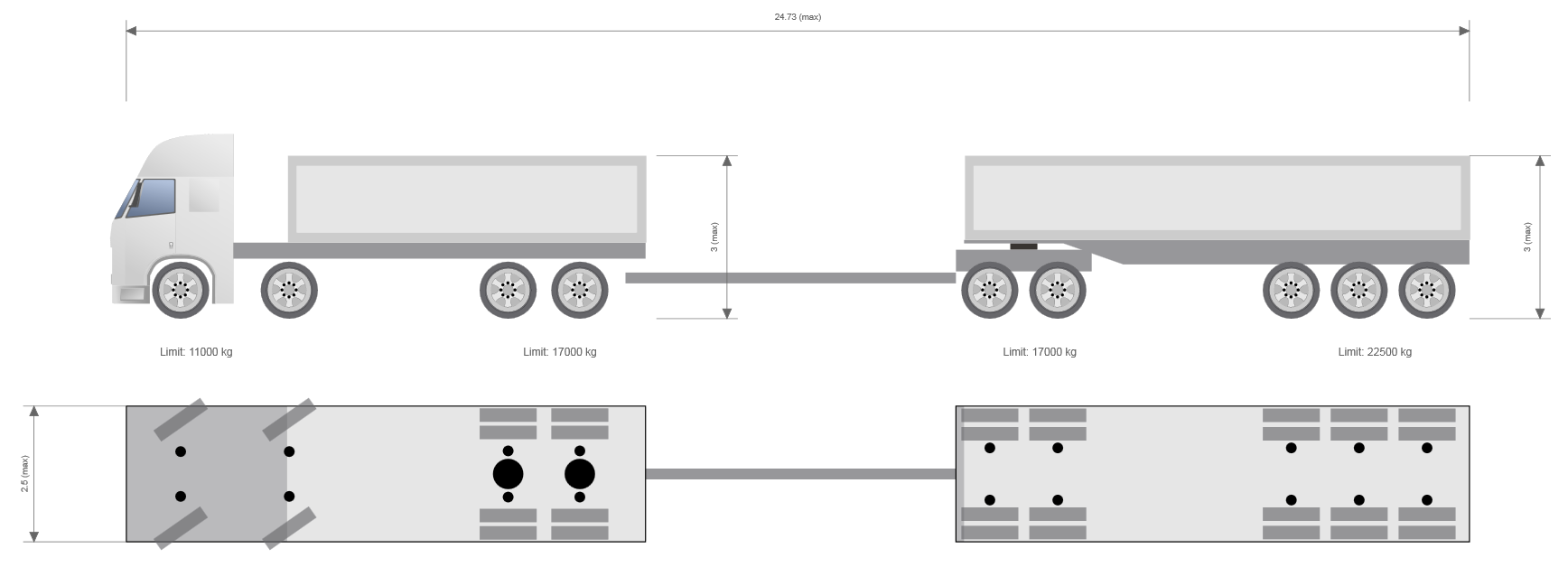

25m 8x4 Truck and Quin-Dog

#

Summary

PBS Access Level 2
Bridge Assessment Tier 1
Maximum GCM 67.5 tonnes
Maximum Length 24.73 m
Maximum Width 2.5 m
Maximum Height 3.0 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

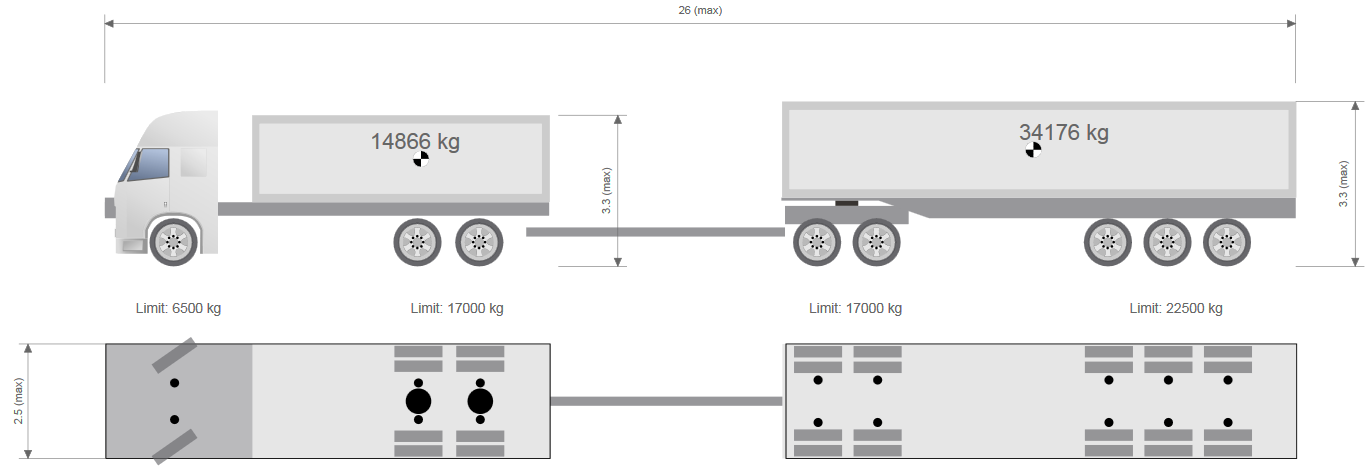

26m 6x4 Truck and Quin-Dog

#

Summary

PBS Access Level 2
Bridge Assessment Tier 1 / Tier 3
Maximum GCM 63.0 tonnes
Maximum Length 26 m
Maximum Width 2.5 m
Maximum Height 3.3 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

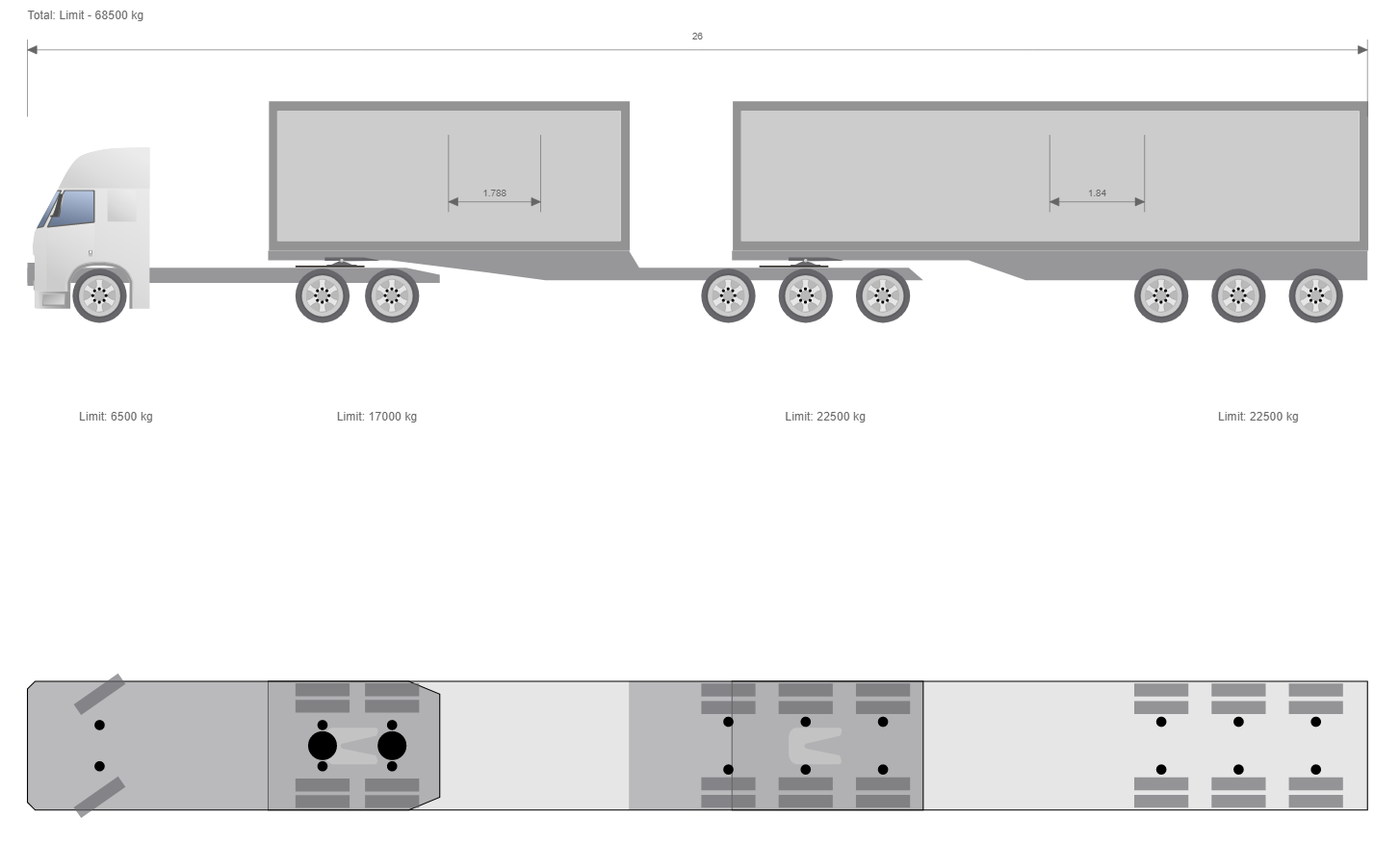

26m Tri Tri B-Double

#

Summary

PBS Access Level 2
Bridge Assessment Tier 1
Maximum GCM 68.5 tonnes
Maximum Length 26 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

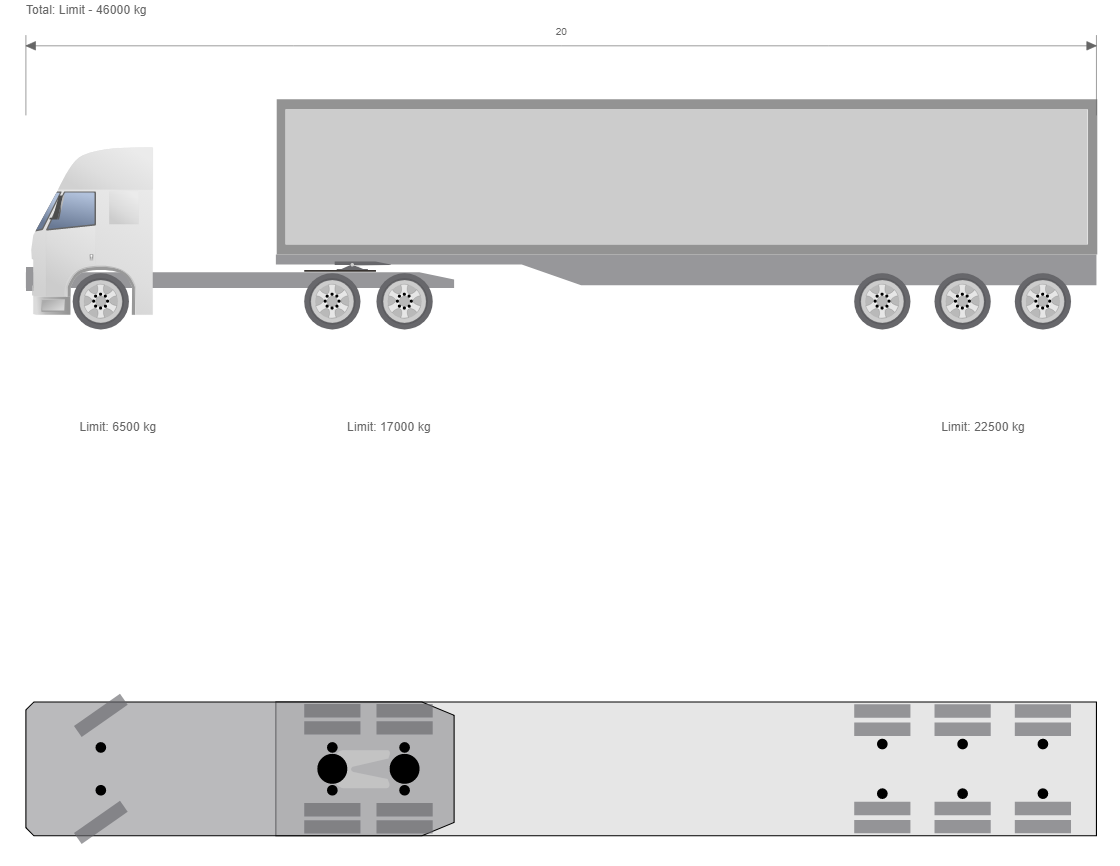

20m Tri-Semi

#

Summary

PBS Access Level 1
Bridge Assessment Tier 1
Maximum GCM 46.0 tonnes
Maximum Length 20 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 1 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

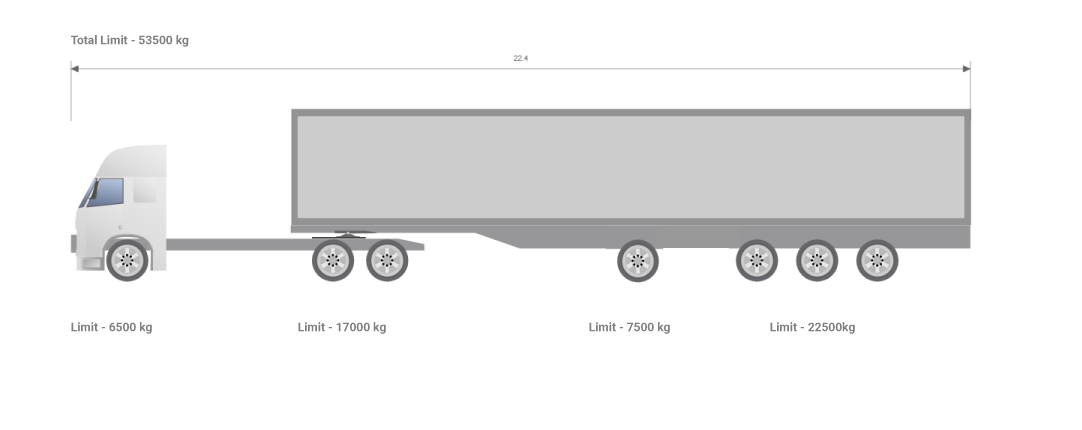

22.4m Pallet Quad-Semi with Belly Axle

#

Summary

PBS Access Level 2
Bridge Assessment Tier 1 / Tier 3
Maximum GCM 53.5 tonnes
Maximum Length 22.4 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

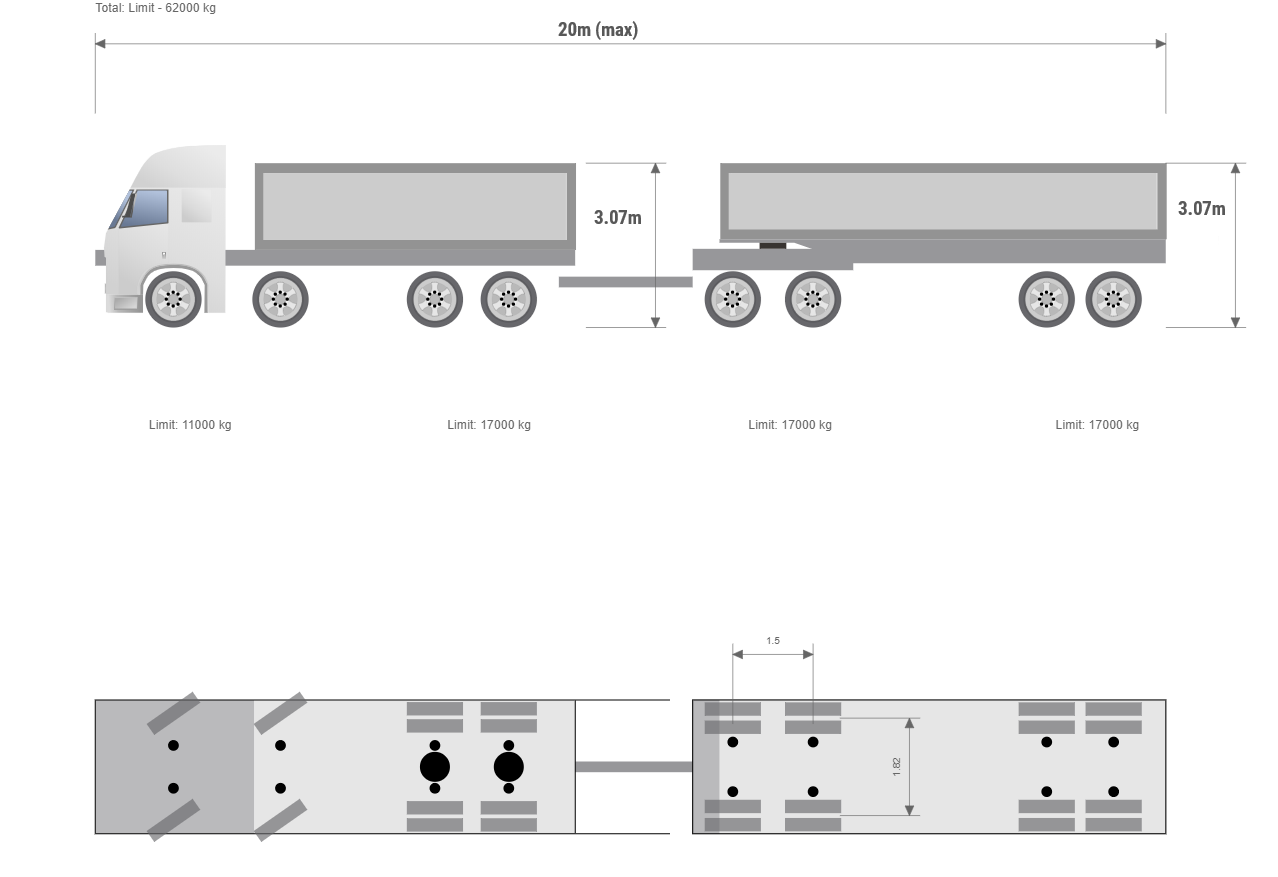

20m 8x4 Truck and Quad-Dog

#

Summary

PBS Access Level 1 / Level 2
Bridge Assessment Tier 1 / Tier 3
Maximum GCM 50.05 tonnes / 62.0 tonnes
Maximum Length 20.0m
Maximum Width 2.5 m
Maximum Height 3.07 m
Card image cap

Vehicle Road Access

PBS Level 1 and Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

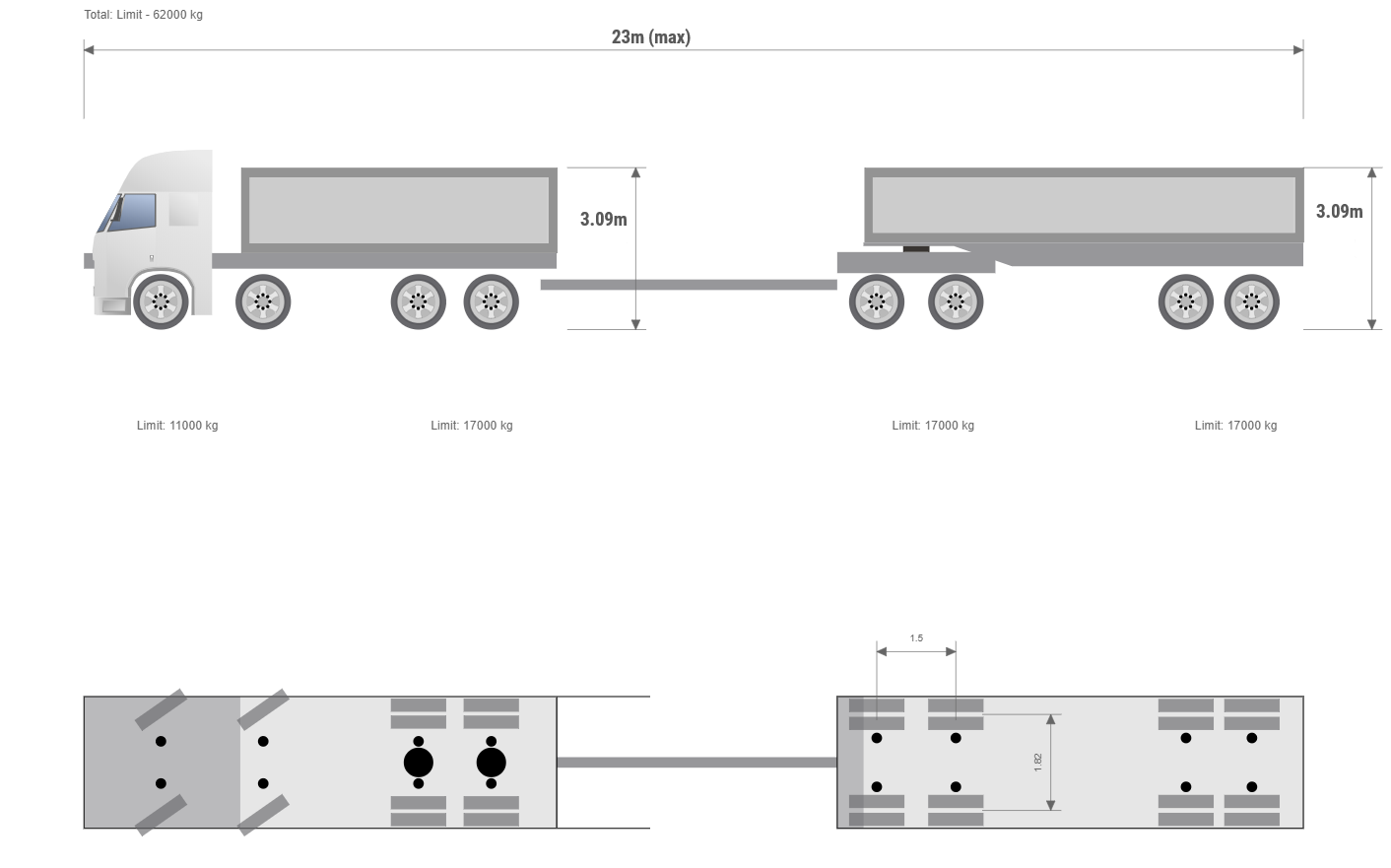

23m 8x4 Truck and Quad-Dog

#

Summary

PBS Access Level 2
Bridge Assessment Tier 1
Maximum GCM 62.0 tonnes
Maximum Length 23.0 m
Maximum Width 2.5 m
Maximum Height 3.09 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

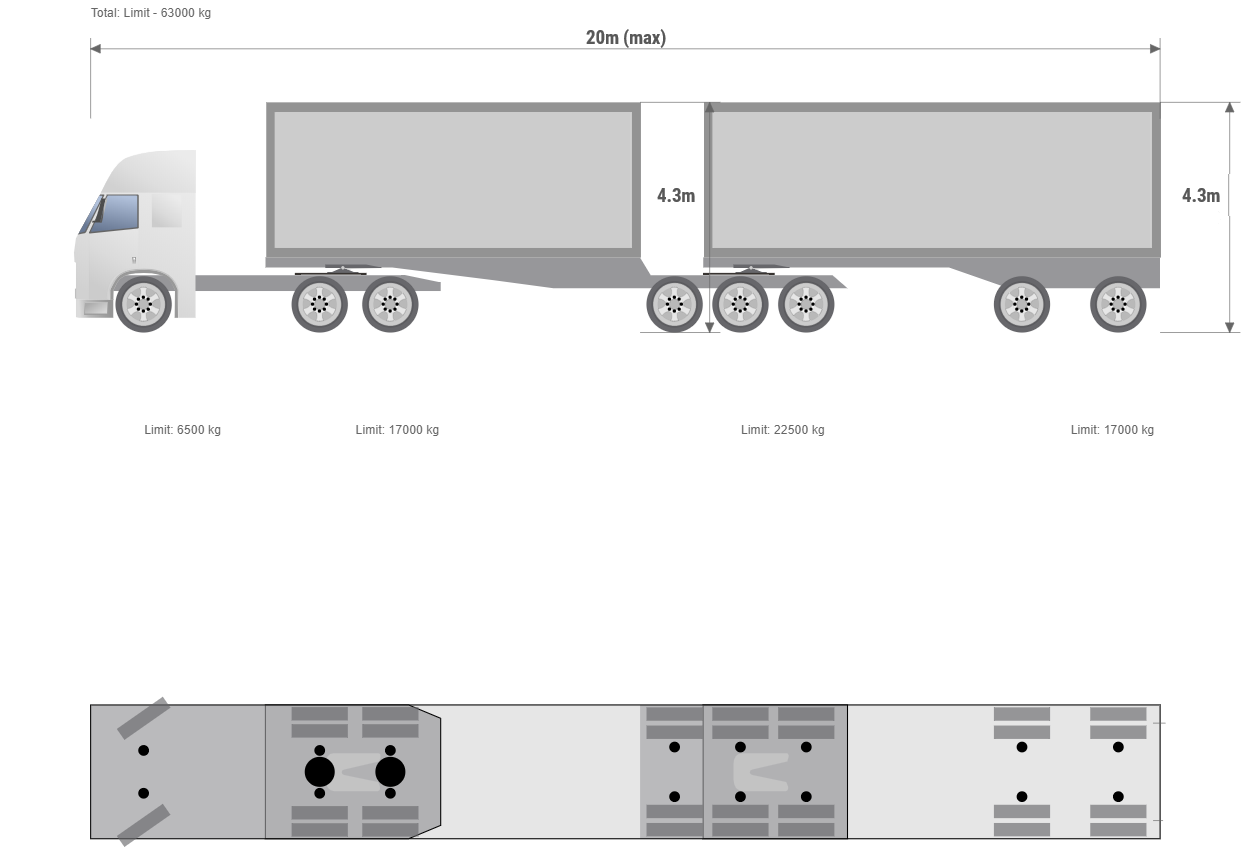

20m B-Double Curtainsider

#

Summary

PBS Access Level 2
Bridge Assessment Tier 1 / Tier 3
Maximum GCM 63.0 tonnes
Maximum Length 20 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

20m 8x4 Truck and Tri-axle Dog

#

Summary

PBS Access Level 1 / Level 2
Bridge Assessment Tier 1
Maximum GCM 50.5 tonnes / 54.0 tonnes
Maximum Length 20.0m
Maximum Width 2.5 m
Maximum Height 3.75 m
Card image cap

Vehicle Road Access

PBS Level 1 and Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

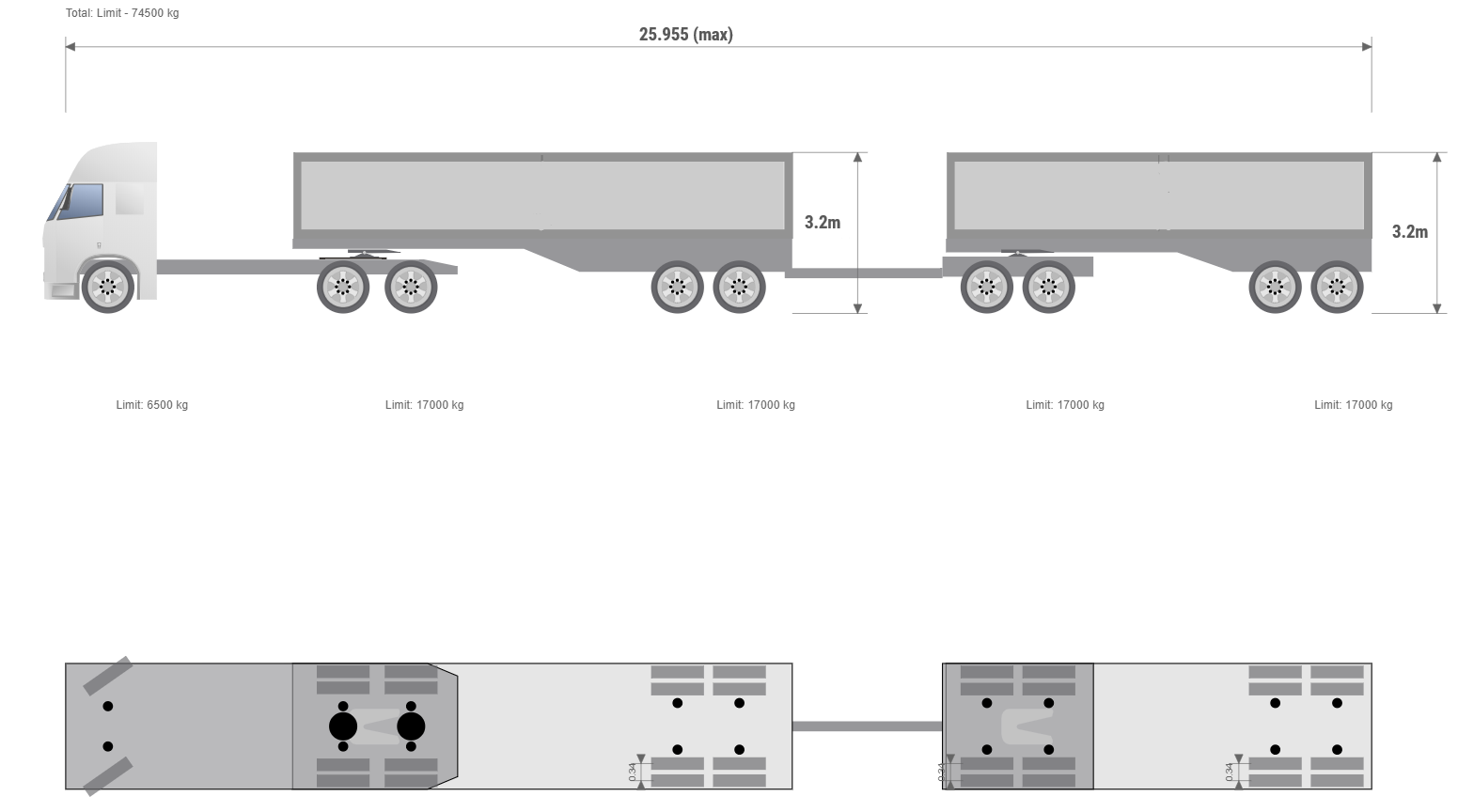

26m A-Double

#

Summary

PBS Access Level 2
Bridge Assessment Tier 1 / Tier 3
Maximum GCM 74.5 tonnes
Maximum Length 26 m
Maximum Width 2.5 m
Maximum Height 3.2 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

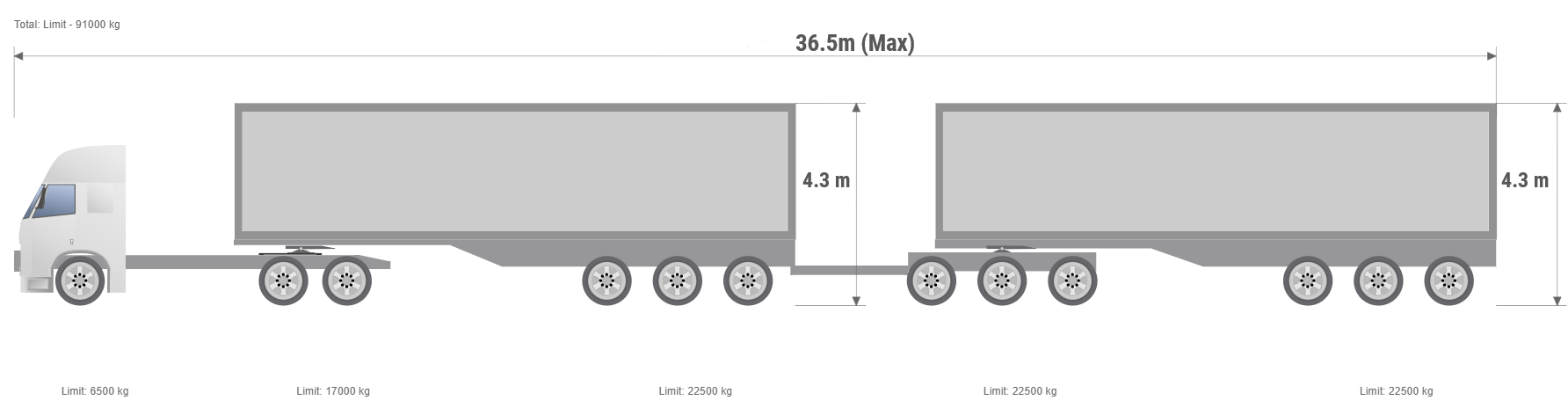

36.5m A-Double

#

Summary

PBS Access Level 3
Bridge Assessment Tier 1
Maximum GCM 91.0 tonnes
Maximum Length 36.5 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 3 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

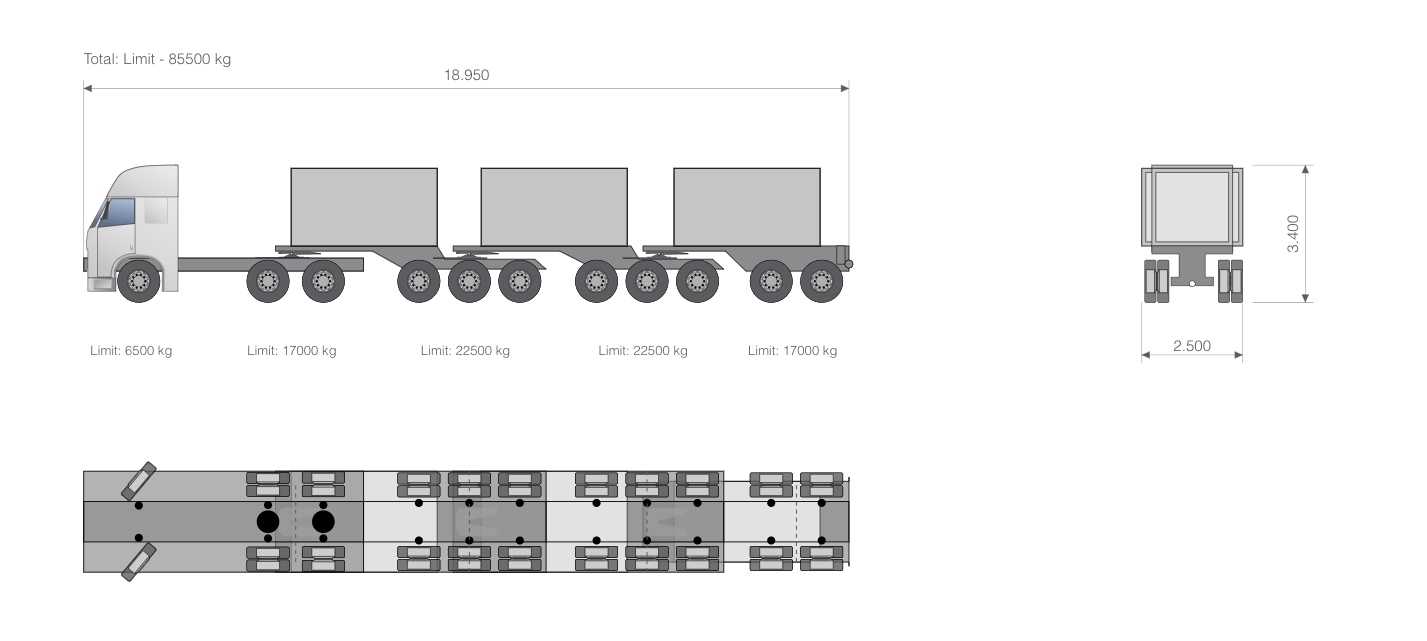

19m B-Triple

#

Summary

PBS Access Level 2
Bridge Assessment Tier 3
Maximum GCM 85.0 tonnes
Maximum Length 19.0 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

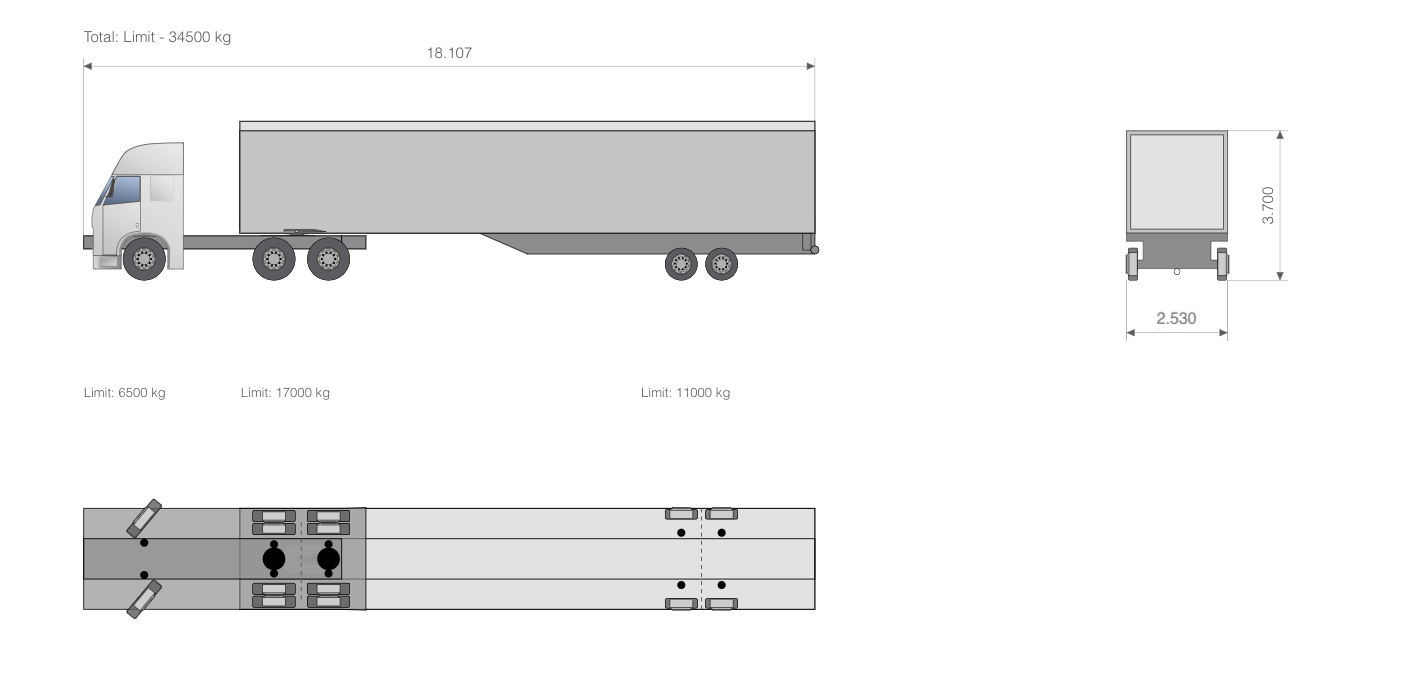

18m 6x4 Prime Mover and Over Width Tandem-Semi

#

Summary

PBS Access Level 1
Bridge Assessment Tier 1
Maximum GCM 34.5 tonnes
Maximum Length 18.11 m
Maximum Width 2.53 m
Maximum Height 3.7 m
Card image cap

Vehicle Road Access

PBS Level 1 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

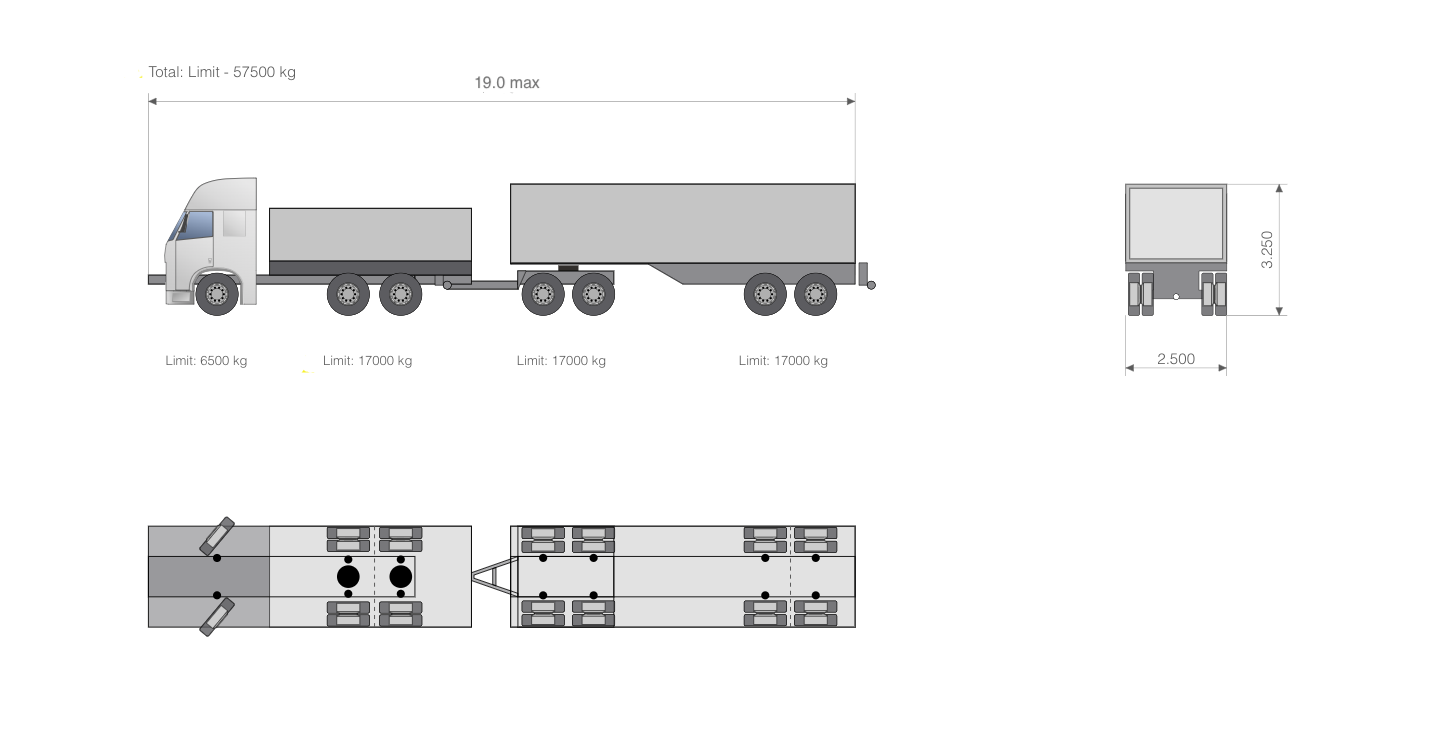

19m 6x4 DG Truck and Quad-Dog

#

Summary

PBS Access Level 2
Bridge Assessment Tier 1 / Tier 3
Maximum GCM 57.5 tonnes
Maximum Length 19.0 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

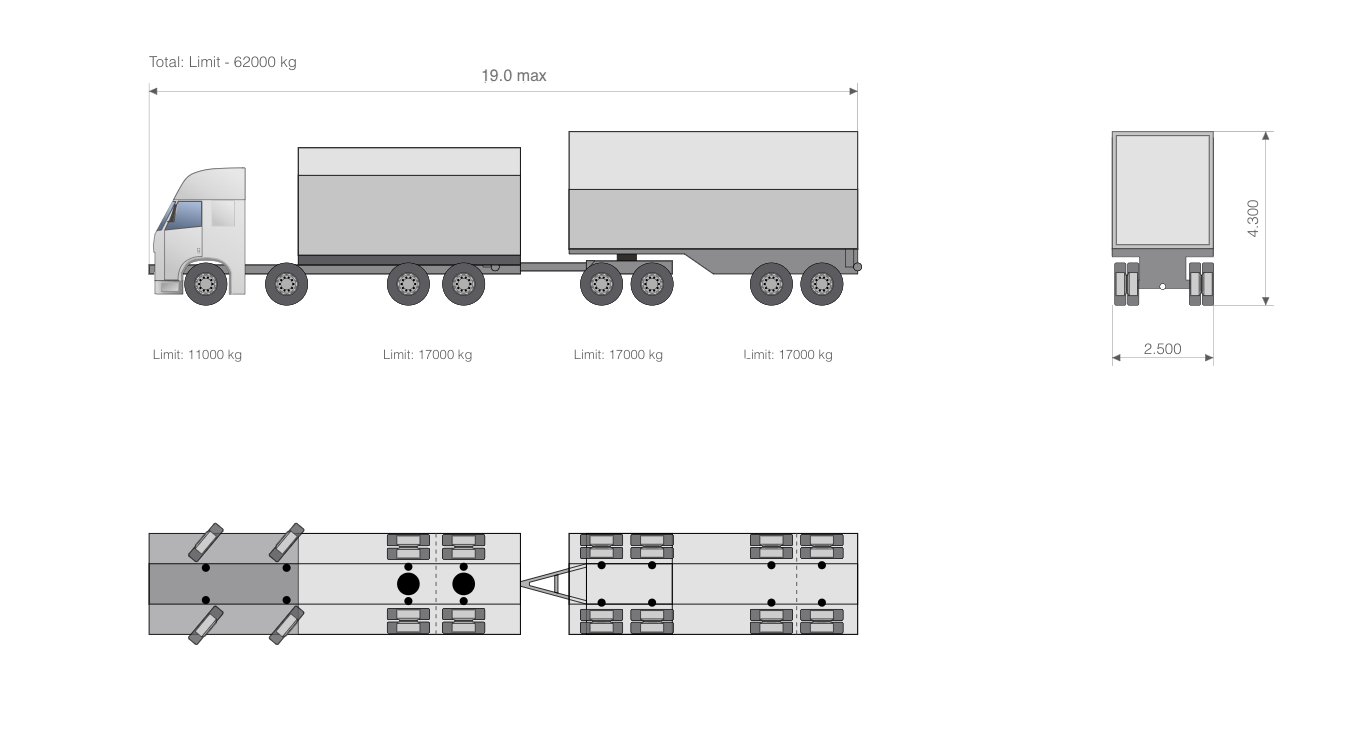

19m 8x4 DG Truck and Quad-Dog

#

Summary

PBS Access Level 2
Bridge Assessment Tier 1/ Tier 3
Maximum GCM 60.1 tonnes
Maximum Length 19.0 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

20m 6x4 Truck and Quad-Dog Livestock

#

Summary

PBS Access Level 1 / Level 2
Bridge Assessment Tier 1
Maximum GCM 50.5 / 57.5 tonnes
Maximum Length 20.0 m
Maximum Width 2.5 m
Maximum Height 3.955 m
Card image cap

Vehicle Road Access

PBS Level 1 and Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

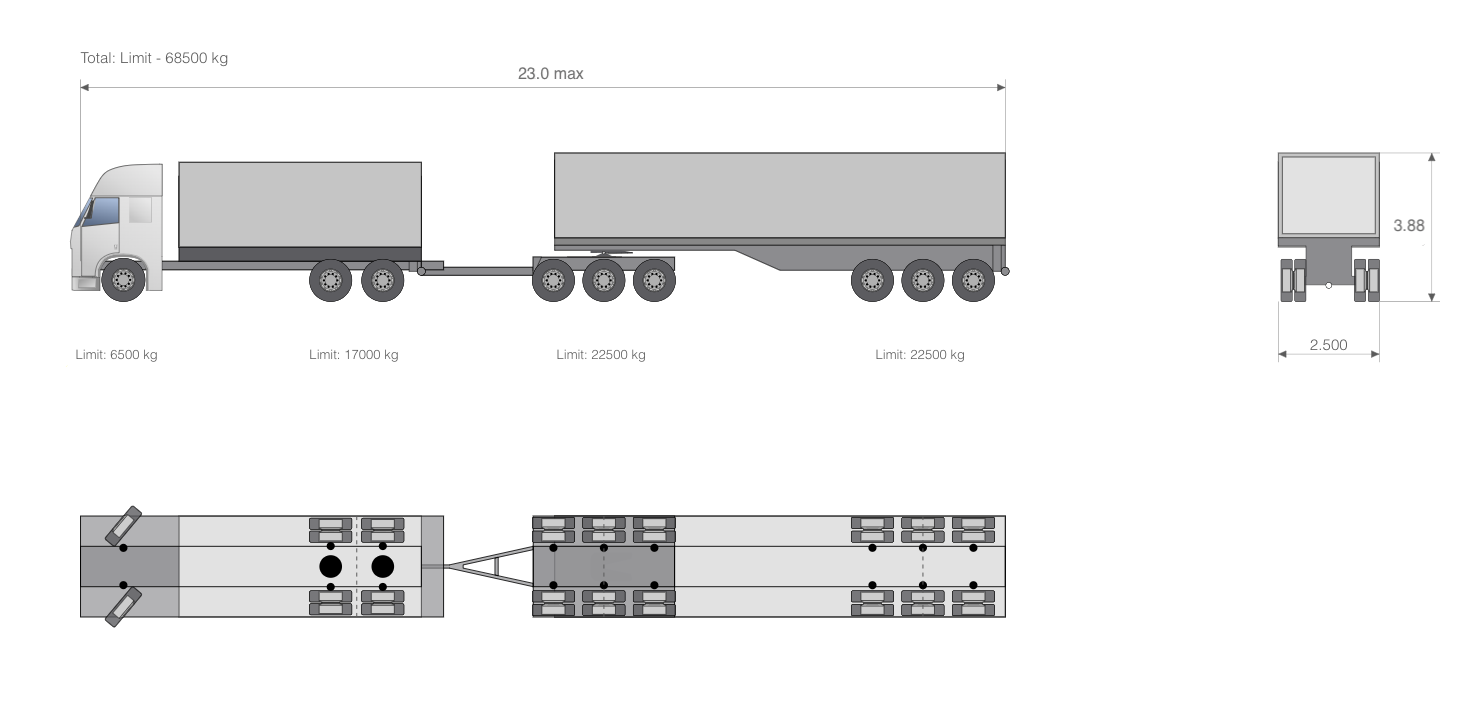

23m 6x4 Truck and 6-axle Dog

#

Summary

PBS Access Level 2
Bridge Assessment Tier 1 / Tier 3
Maximum GCM 68.5 tonnes
Maximum Length 23.0 m
Maximum Width 2.5 m
Maximum Height 3.88 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

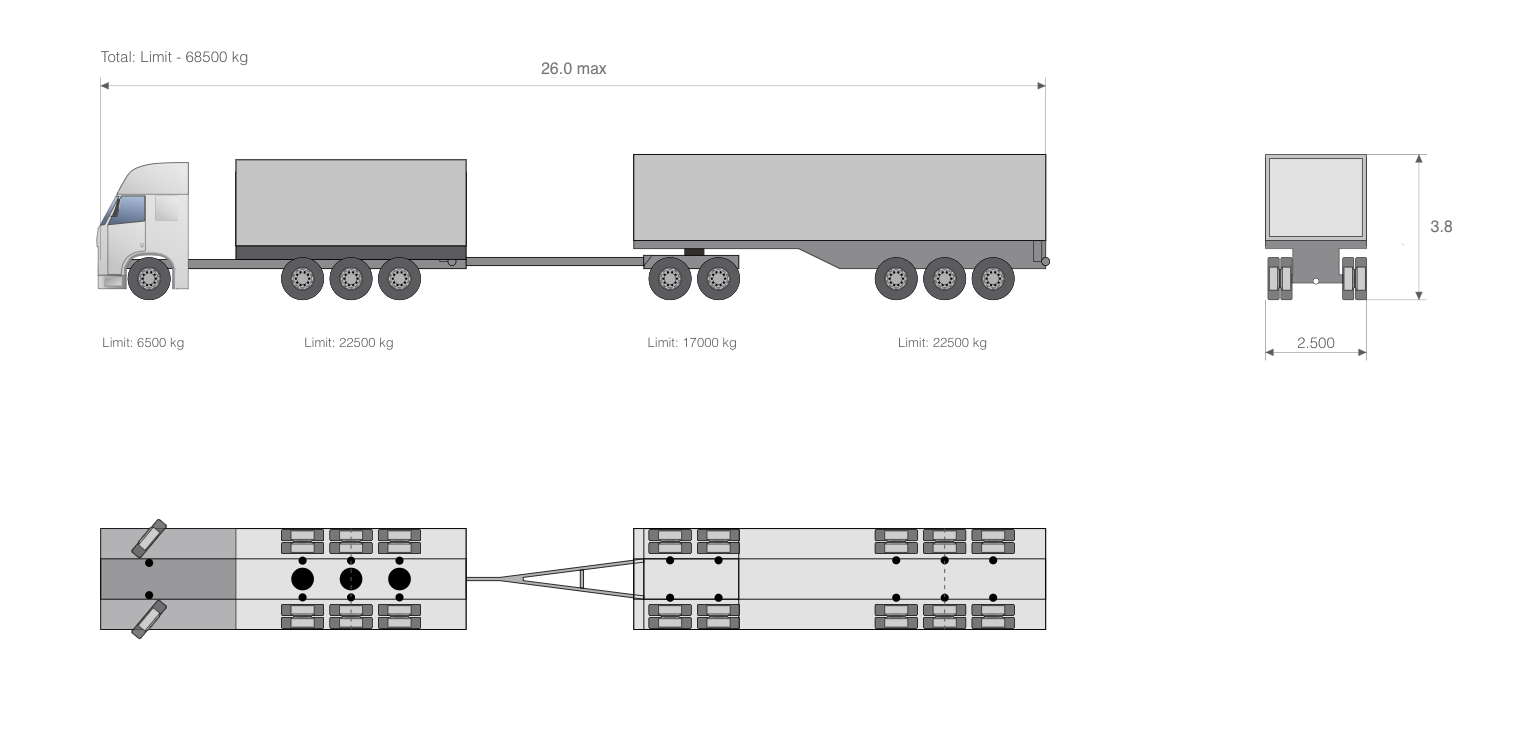

26m 8x6 Truck and Quin-Dog

#

Summary

PBS Access Level 2
Bridge Assessment Tier 1 / Tier 3
Maximum GCM 68.5 tonnes
Maximum Length 26.0 m
Maximum Width 2.5 m
Maximum Height 3.8 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

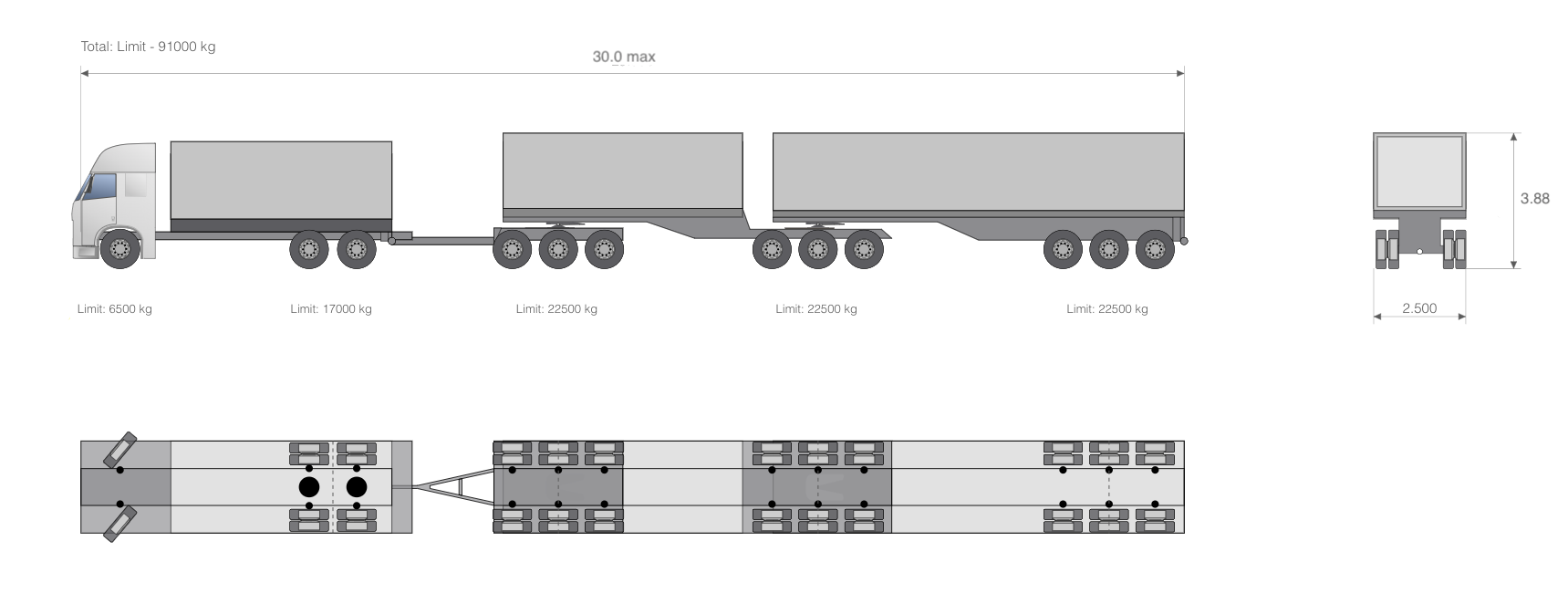

30m 6x4 Truck with B-double Trailer Set

#

Summary

PBS Access Level 2 / Level 3
Bridge Assessment Tier 1 / Tier 3
Maximum GCM 91.0 tonnes
Maximum Length 30.0 m
Maximum Width 2.5 m
Maximum Height 3.88 m
Card image cap

Vehicle Road Access

PBS Level 2 and Level 3 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

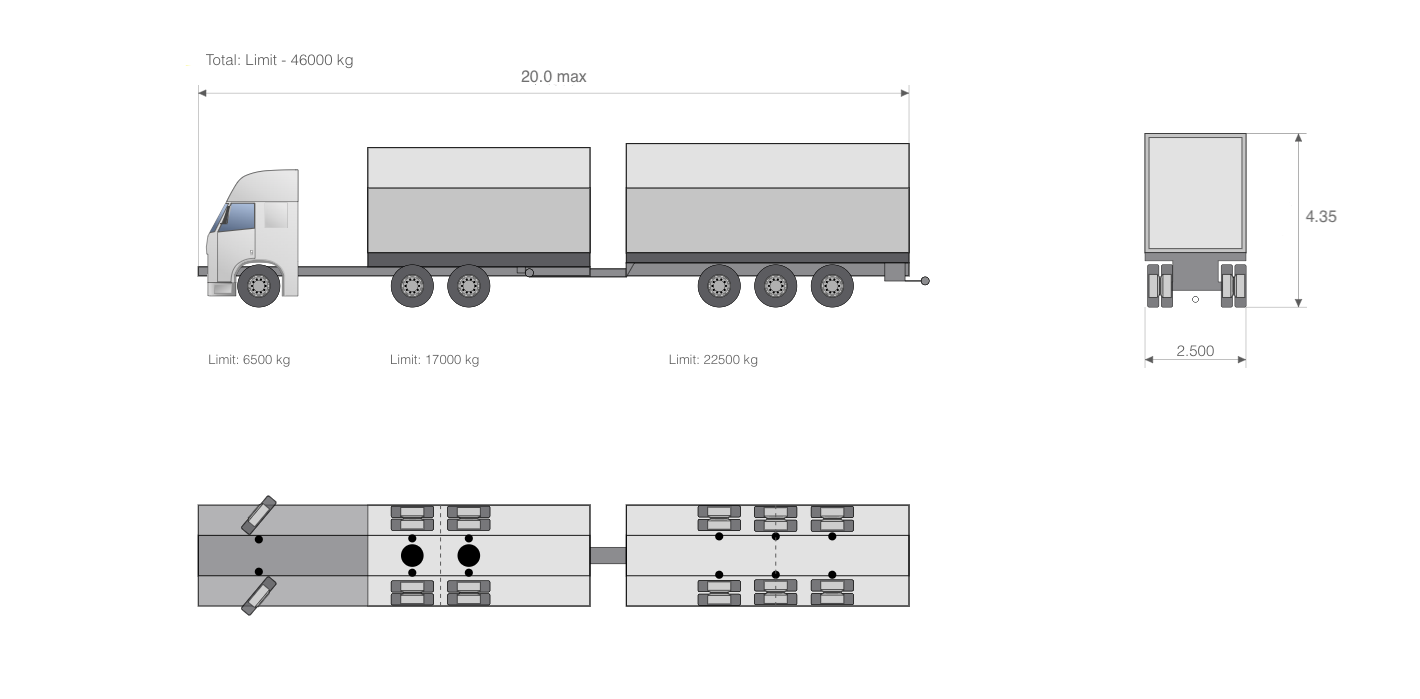

20m 6x4 Truck and Tri-Pig

#

Summary

PBS Access Level 1 / Level 2
Bridge Assessment Tier 1
Maximum GCM 46.0 tonnes
Maximum Length 20.0 m
Maximum Width 2.5 m
Maximum Height 4.35 m
Card image cap

Vehicle Road Access

PBS Level 1 and Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

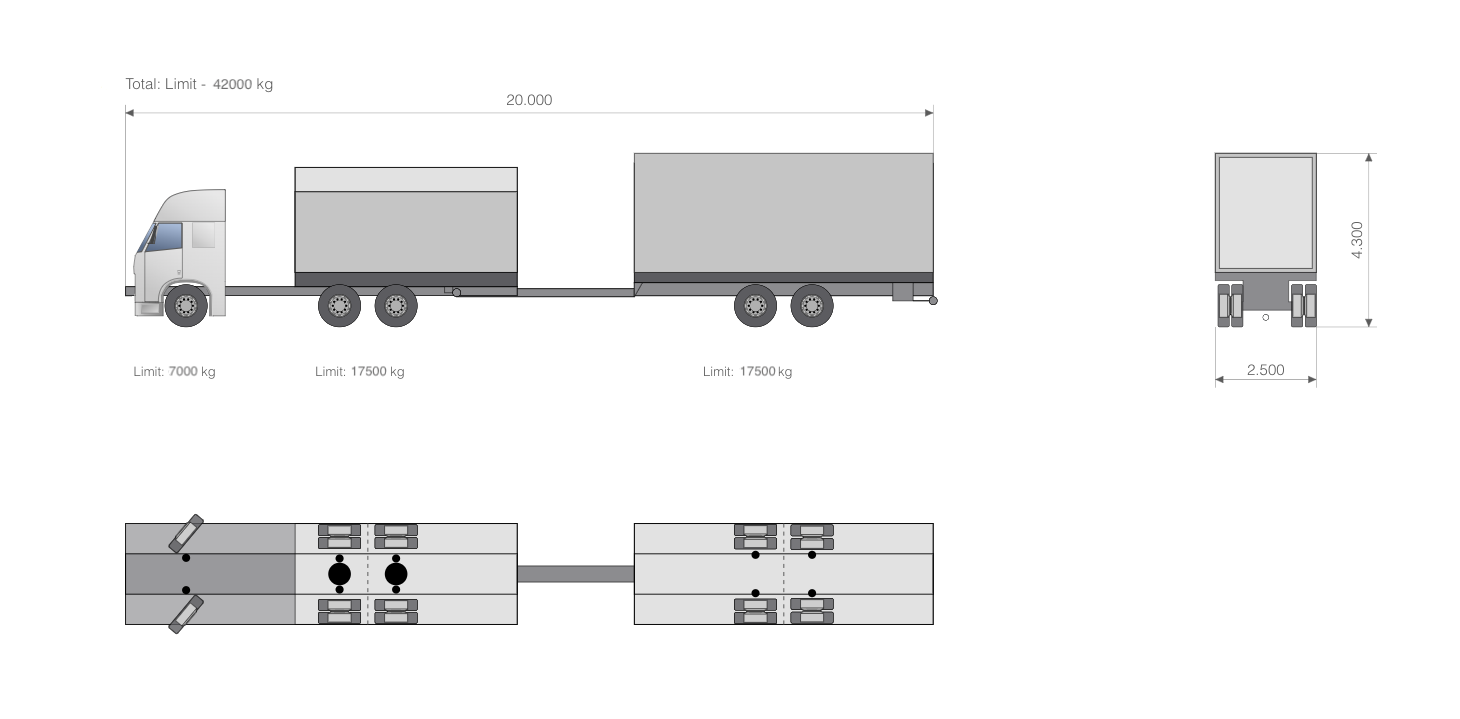

20m WAPBS 6x4 Truck and Tandem-Pig

#

Summary

PBS Access Level 1
Bridge Assessment Tier 1
Maximum GCM 42.0 tonnes
Maximum Length 20.0 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 1 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.

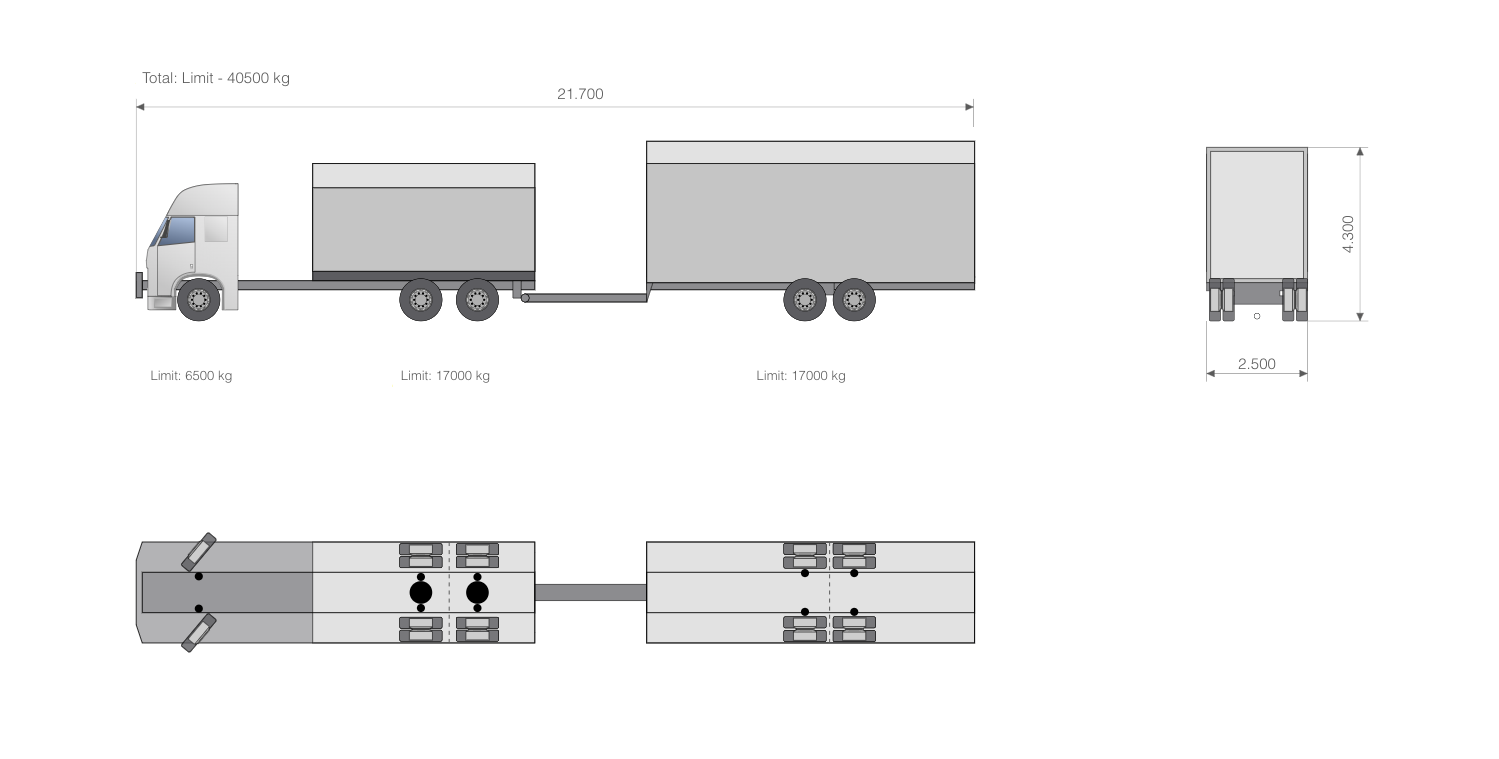

21.7m 6x4 Truck and Tandem-Pig

#

Summary

PBS Access Level 2A
Bridge Assessment Tier 1
Maximum GCM 40.5 tonnes
Maximum Length 21.7 m
Maximum Width 2.5 m
Maximum Height 4.3 m
Card image cap

Vehicle Road Access

PBS Level 2 Network Access obtained from the NHVR website (July 2020). Please refer to the NHVR website for further information.
